Cupro Nickel 90/10 Coils
UNS C70600 Coils
Excellent resistance to seawater corrosion and biofouling. Highly resistant to stress corrosion cracking with superior thermal performance.
ASTM B171 / ASME SB171
UNS C70600
EN 2.0872 / CuNi10Fe1Mn
CN102 / CW352H
📋 Table of Contents
HRS Ferritic · Globally Trusted Supplier

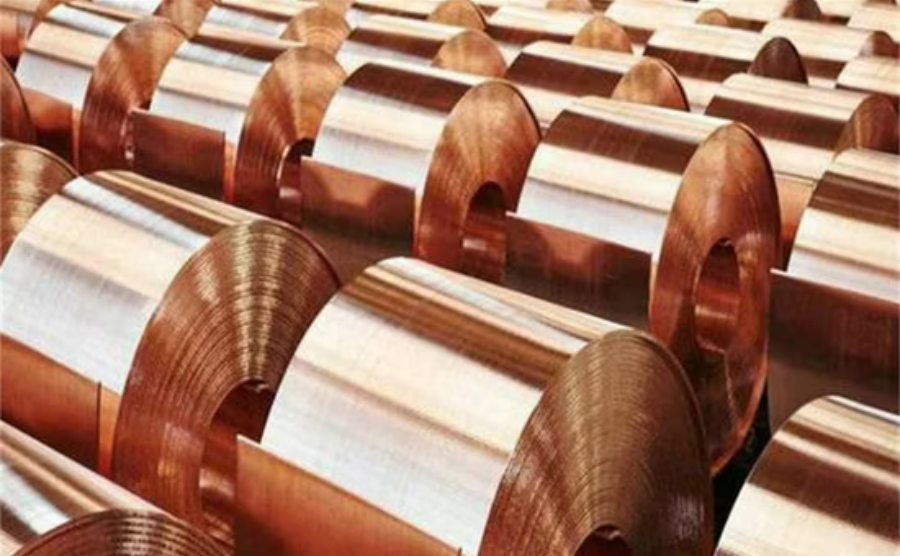

What are Cupro Nickel 90/10 Coils?
Cupro Nickel 90/10 Coils are copper-nickel alloy coils composed of 90% copper and 10% nickel, known for their excellent resistance to seawater corrosion and biofouling. HRS Ferritic is a recognized Cupro Nickel 90/10 Coils Supplier, Stockist, and Importer, offering premium products sourced from valuable and certified manufacturers. These coils are widely used in marine, offshore, and heat exchanger applications due to their superior durability and thermal performance.
- Excellent seawater corrosion resistance
- High thermal conductivity
- Strong resistance to biofouling
- Good mechanical strength
- Long service life
- Low maintenance requirements
HighDurable
Working Mechanism
How Cupro Nickel 90/10 Coils Works
Cupro Nickel 90/10 Coils work through the formation of a protective oxide layer on the surface, which prevents direct contact between metal and corrosive seawater. Copper ensures high thermal conductivity, while nickel improves corrosion resistance and mechanical strength.
90%
Copper Content
10%
Nickel Content
105-120
Yield (MPa)
0.5-100
Thickness (mm)
Composition Analysis
Metallurgical Characteristics of Cupro Nickel 90/10 Coils
Key alloying elements that contribute to the superior performance of Cu-Ni 90/10 grades.
Cu
Copper
Provides fundamental thermal conductivity and corrosion resistance.
Ni
Nickel
Enhances mechanical strength and seawater durability.
Fe
Iron
Improves structural stability and erosion-corrosion resistance.
Mn
Manganese
Enhances workability and deoxidation during melting.
Zn
Zinc
Trace amounts used to stabilize alloy performance across temperatures.
Technical Data
Specifications for Cupro Nickel 90/10 Coils
ASTM B171 · ASME SB171 · UNS C70600 · EN 2.0872
| Specification | Details |
|---|---|
| ASTM / ASME | ASTM B171 / ASME SB171 |
| UNS | UNS C70600 |
| EN | 2.0872 / CuNi10Fe1Mn |
| DIN | 2.0872 / CuNi10Fe1Mn |
| ISO | CuNi10Fe1Mn |
| JIS | C7060 (approx. designation for Cu-Ni 90/10) |
| Product Form | Sheets / Plates / Coils |
| Thickness Range | 0.5 mm to 100 mm |
| Standard Widths | 1000, 1219, 1250, 1500, 1800, 2000, 2500, 3000, 3500 mm, etc |
| Standard Lengths | 2000, 2440, 2500, 3000, 5800, 6000 mm, etc |
| Custom Width Cut | Available as per customer requirement |
| Custom Length Cut | Available as per customer requirement |
| Surface Finish | Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP) |
| Supply Condition | Solution Annealed |
| Cutting Methods | Plasma, Laser, Waterjet, Oxy Propane |
| Packaging | Bundled, Wooden Plates, Bubble wraps, Customized |
Inventory
Available Stock & Product Forms
Flat Products
Precision sheets, heavy plates, and shim sheets in various Cu-Ni grades.
Coils & Strips
Slitting coils, perforated coils, and thin foils from 0.05 mm thickness.
Speciality Forms
Circles, rings, custom-cut blanks, and chequered (tread) plates.
Edge Types
Mill edge, slit edge, round edge, and square edge conditions available.
Copper (Cu)
88.6 – 91.0 % — Base metal for thermal and corrosion performance.
Nickel (Ni)
9.0 – 11.0 % — Enhances mechanical strength and seawater resistance.
Iron (Fe)
1.0 – 1.8 % — Improves erosion and structural stability.
Manganese (Mn)
≤ 1.0 % — Enhances workability and structural integrity.
Yield Strength
105–120 MPa — Typical annealed yield for marine components.
Tensile Strength
275–320 MPa — Minimum UTS for standard annealed coils.
Elongation
25–40 % — High ductility for complex forming and fabrication.
Hardness
70–110 HB — Typical Brinell range for optimal workability.
Product Range
Types of Cupro Nickel 90/10 Coils
Available in multiple finishes and conditions for marine engineering needs.
Hot Rolled Cupro Nickel 90/10 Coils
Cold Rolled Cupro Nickel 90/10 Coils
Annealed Cupro Nickel 90/10 Coils
Slit Edge Cupro Nickel 90/10 Coils
Polished Cupro Nickel 90/10 Coils
Application Sectors
Industries We Serve
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power Industry
Electricity generation and distribution systems.
Ship Building
Marine propulsion and exhaust components.
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition
Chemical Details of Cupro Nickel 90/10 Coils
Typical element concentration for UNS C70600 copper-nickel alloy.
| Element | Composition (%) |
|---|---|
| Copper (Cu) | 88.6 – 91.0 % |
| Nickel (Ni) | 9.0 – 11.0 % |
| Iron (Fe) | 1.0 – 1.8 % |
| Manganese (Mn) | ≤ 1.0 % |
| Lead (Pb) | ≤ 0.05 % |
| Zinc (Zn) | ≤ 1.0 % |
| Carbon (C) | ≤ 0.05 % |
Performance Data
Mechanical Properties of Cupro Nickel 90/10 Coils
105–120
Yield Strength
MPa — 0.2% Proof Strength for annealed components
275–320
Tensile Strength
MPa — Ultimate strength for structural marine use
25–40 %
Elongation
High ductility for complex marine fabrication
70–110 HB
Hardness
Typical Brinell range for durability and workability
8.90 g/cm³
Density
Consistent material density for structural calculations
135 GPa
Elastic Modulus
Young's Modulus for high performance industrial loads
Cost Information
Price List for Cupro Nickel 90/10 Coils
Price Factors
What affects the 90/10 Cu-Ni price?
- Raw material price fluctuations (copper and nickel)
- Coil thickness and width requirements
- Surface finish type (Annealed, Polished)
- Total order quantity and bulk orders
- Current market demand and supply conditions
- Custom cutting and fabrication readiness
Get Pricing Today
Get A Quote!
Competitive rates · High quality · Global delivery
📧 [email protected]
International Standards
Equivalent Grades for Cupro Nickel 90/10 Coils
Cross-reference table for international designations of Cupro Nickel 90/10.
| Standard | Equivalent Grade |
|---|---|
| UNS (USA) | C70600 |
| ASTM (USA) | ASTM B122 / B111 / B466 |
| ISO | CuNi10Fe1Mn |
| EN (Europe) | CuNi10Fe1Mn |
| Werkstoff No. | 2.0872 |
| EN Standard Code | CW352H |
| BS (British Standard) | CN102 |
| JIS (Japan) | C7060 |
| AFNOR (France) | CuNi10Fe1Mn |
| ГОСТ (Russia) | МНЖМц 10-1-1 |
📦
Ready Stock & Inventory
- Flat Products: Precision sheets, heavy plates, shim sheets
- Coils & Strips: Slitting coils, perforated coils, thin foils from 0.05 mm
- Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
- Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality & Logistics
- Testing: PMI, Ultrasonic (UT), Radiography (RT), corrosion testing
- Certification: EN 10204 3.1 / 3.2, NACE compliance on request
- Global Logistics: Supplying USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
- Export Grade: ISPM-15 fumigated wooden crates, moisture-protected packaging
Use Cases
Applications of Cupro Nickel 90/10 Coils
✈️ Aerospace
Used in aerospace cooling systems and hydraulic lines, providing thermal stability.
⛽ Oil & Gas
Used in offshore platforms, pipelines, and heat exchangers for marine resistance.
🌾 Fertilizer Industry
Applied in cooling systems and handling equipment under aggressive conditions.
⚡ Electric & EV
Used in electrical systems and EV battery systems requiring high conductivity.
🏗️ Construction
In construction, these coils are used in coastal infrastructure and piping systems.
🧪 Chemical Processing
Widely used in heat exchangers and piping resistant to corrosive solutions.
🚗 Automotive
Used in automotive cooling systems and brake lines for corrosion resistance.
💊 Pharmaceuticals
Used in equipment requiring high purity and strict hygiene standards.
Why HRS Ferritic
Why Choose HRS Ferritic for Cupro Nickel 90/10?
HRS Ferritic is committed to delivering high-quality alloy solutions with reliability and efficiency. We ensure all products meet international standards while serving diverse industrial applications with durable and high-performing 90/10 copper-nickel coils.
Leading Cupro Nickel 90/10 Coils Supplier
Trusted Cupro Nickel 90/10 Coils Stockist
Reliable Cupro Nickel 90/10 Coils Importer
Competitive pricing with full traceability
Wide inventory availability of sizes and finishes
Fast delivery services and global logistics
Materials sourced from valuable certified manufacturers
Precision technical support and guidance
🇮🇳
Cities We Supply In India
New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia ·
Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar ·
Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur ·
Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍
Countries We Export To
Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE ·
Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia ·
United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support
Frequently Asked Questions
Quick answers to common queries about Cupro Nickel 90/10 Coils.
Larger Cupro Nickel 90/10 Coils increase material usage and handling costs, raising final pricing when purchased from a Cupro Nickel 90/10 Coils Supplier for industrial applications.
Thicker coils require more raw material and processing, increasing overall cost when sourced from a Cupro Nickel 90/10 Coils Stockist or manufacturer.
Advanced finishes like polished or annealed increase production complexity and cost when purchased from a Cupro Nickel 90/10 Coils Importer due to additional processing.
Yes, fluctuations in copper and nickel prices directly impact pricing offered by any Cupro Nickel 90/10 Coils Supplier in the global market.
Custom sizes increase manufacturing complexity and cost, making them more expensive when sourced from a Cupro Nickel 90/10 Coils Stockist due to additional processing.
Bulk orders reduce per-unit cost due to economies of scale, making purchases from a Cupro Nickel 90/10 Coils Importer more cost-effective for large industrial requirements.
Cupro Nickel 90/10 Coils are ideal for marine cooling systems due to excellent seawater corrosion resistance from a trusted Cupro Nickel 90/10 Coils Supplier.
