HRS Ferritic · SS 430Ti Coils Supplier & Stockist

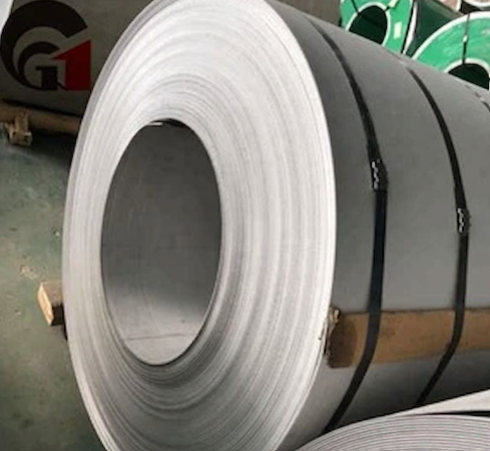

SS 430Ti / AISI 430Ti Coils
Exporter / Importer / Supplier
HRS Ferritic is a specialized and trusted name in the ferritic stainless steel segment, supplying premium-quality stainless steel coils to global industries. As a reliable SS 430Ti Coils / AISI 430Ti Coils Supplier, SS 430Ti Stockist, and SS 430Ti Importer, we source materials exclusively from ISO-certified, ASTM- and EN-compliant mills. With strong technical expertise, consistent inventory, and a customer-focused approach, the company serves industries such as automotive, construction, electrical, chemical processing, and infrastructure, ensuring quality, traceability, and timely delivery.
- Excellent resistance to intergranular corrosion
- Improved performance in welded conditions
- Stable microstructure at high temperatures
- Cost-effectiveness compared to austenitic grades
- Resistance to oxidation and scaling
- Long service life in heat-intensive environments
430TiFerritic Grade
Grade Overview
What are SS 430Ti Coils / AISI 430Ti Coils?
SS 430Ti Coils, also known as AISI 430Ti Coils, are titanium-stabilized ferritic stainless steel coils. This grade is an enhanced version of SS 430, where titanium is added to prevent carbide precipitation, improving weldability and resistance to intergranular corrosion. SS 430Ti offers excellent oxidation resistance, good formability, and superior stability at elevated temperatures, making it suitable for demanding thermal applications.
16.0–18.0%
Chromium Content
Titanium
Stabilized Grade
450–600
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis
Metallurgical Characteristics Stainless Steel SS 430Ti Coils
The specific combination of elements in SS 430Ti ensures optimized thermal stability and continuous corrosion resistance.
Fe
Iron
Base metal forming the primary structure of the alloy.
Cr
Chromium
Provides corrosion and oxidation resistance by forming a protective passive layer.
Ti
Titanium
Stabilizes the structure, prevents chromium carbide formation, and improves corrosion resistance at high temperatures.
C
Carbon
Adds strength and hardness; content is carefully controlled to maintain corrosion resistance.
Mn
Manganese
Improves strength, toughness, and hot working properties.
Si
Silicon
Enhances oxidation resistance and strength, and acts as a deoxidizer during steelmaking.
P
Phosphorus
Controlled element to balance machinability without reducing toughness.
S
Sulfur
Maintained at low levels to ensure material toughness and corrosion resistance.
Technical Data
Specifications for SS 430Ti Coils / AISI 430Ti Coils
ASTM A240 / ASME SA240 · UNS S43036 · EN 1.4510 · JIS SUS 430Ti
| Specification | Details |
|---|---|
| ASTM / ASME | ASTM A240 / ASME SA240 (Plate, Sheet, and Strip) |
| UNS | UNS S43036 |
| EN | EN 1.4510 |
| DIN | 1.4510 |
| ISO | ISO X3CrTi17 |
| JIS | SUS 430Ti / SUS 430LX |
| Product Form | Coils / Plates / Sheets |
| Thickness Range | 0.5 mm to 100 mm |
| Standard Widths | 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500mm, 3000mm, 3500mm, etc |
| Standard Lengths | 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000mm, etc |
| Custom Width Cut | Available as per customer requirement |
| Custom Length Cut | Available as per customer requirement |
| Surface Finish | Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP) |
| Supply Condition | Solution Annealed |
| Cutting Methods | Plasma, Laser, Waterjet, Oxy Propane |
| Packaging | Bundled, Wooden Plates, Bubble wraps, Customized |
Inventory
Available Stock & Product Forms
Coils
High-quality 430Ti coils in multiple sizes and finishes for immediate delivery.
Plates
Heavy plates and sheets for structural and high-temperature frameworks.
Strips
Precision slitting coils and thin foils from 0.05 mm thickness.
Blanks
Circles, rings, and custom-cut blanks tailored to requirements.
Chromium (Cr)
16.0 – 18.0% — Provides excellent corrosion and oxidation resistance.
Carbon (C)
≤ 0.08% — Controlled levels to balance strength and durability.
Manganese (Mn)
≤ 1.0% — Enhances strength and toughness.
Titanium (Ti)
0.3 – 0.75% — Stabilizes the structure and prevents intergranular corrosion.
Tensile Strength
450 – 600 MPa — Solid structural integrity for thermal applications.
Yield Strength
240 – 300 MPa — Reliable performance in fabrication and forming.
Elongation
20 – 30% — Excellent ductility for bending and complex shapes.
Hardness
≤ 200 HB — Balanced machinability and surface durability.
Product Range
Types of SS 430Ti Coils / AISI 430Ti Coils
As an experienced AISI/SS 430Ti Coils Importer, we offer customized sizes and finishes for immediate delivery.
Hot Rolled SS 430Ti Coils
Cold Rolled SS 430Ti Coils
Annealed SS 430Ti Coils
Polished SS 430Ti Coils
BA & Decorative Finish SS 430Ti Coils
Application Sectors
Industries We Serve
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power Industry
Electricity generation and distribution systems.
Ship Building
Marine propulsion and exhaust components.
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition
Chemical Property of SS 430Ti Coils / AISI 430Ti Coils
Titanium binds carbon and nitrogen, preventing chromium carbide formation during welding or high-temperature exposure, ensuring continuous corrosion resistance.
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Titanium (Ti) | 0.3 – 0.75 |
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 1.0 |
| Silicon (Si) | ≤ 1.0 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.03 |
Performance Data
Mechanical properties of SS 430Ti Coils / AISI 430Ti Coils
450 – 600
Tensile Strength
MPa — Solid structural integrity for heat-intensive use
240 – 300
Yield Strength
MPa — Reliable performance in forming and fabrication
20 – 30%
Elongation
Excellent ductility for bending and complex shapes
≤ 200 HB
Hardness
Balanced machinability and surface durability
Moderate
Impact Resistance
Reliable performance under high-temperature loads
Cost Information
Price Lists of SS 430Ti Coils / AISI 430Ti Coils
Price Factors
Factors that affect the price of SS 430Ti Coils
- Titanium alloying and raw material costs
- Coil dimensions and surface finish (HR/CR)
- Manufacturing process and quality standards
- Bulk order quantity and delivery schedule
- Logistics, import duties, and market conditions
Get A Free Quote
Connect with HRS!
Premium certified SS 430Ti Coils at best value
📧 [email protected]
International Standards
Equivalent Grades for SS 430Ti Coils / AISI 430Ti Coils
Global metallurgical designations for SS 430Ti across all major standards.
| Standard / System | Equivalent Grade / Designation |
|---|---|
| AISI / ASTM (USA) | 430Ti / Type 430Ti |
| UNS | S43036 |
| ISO (International) | X3CrTi17 |
| EN (Europe) | 1.4510 / X3CrTi17 |
| DIN (Germany) | 1.4510 |
| JIS (Japan) | SUS 430Ti / SUS 430LX |
| BS (British Standard) | Aligned with 430Ti family |
| AFNOR (France) | X3CrTi17 |
| GOST (Russia) | Z4CT17 / 08KH17T |
| GB (China) | Chinese equivalent to X3CrTi17 |
📦
Ready Stock Availability & Product Forms
- Flat Products: Precision sheets, heavy plates, shim sheets
- Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
- Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
- Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
- Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
- Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
- Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
- Export Packaging: ISPM-15 fumigated wooden crates, moisture-protected
Use Cases
Applications and Importance of SS 430Ti Coils
🌾 Fertilizer Industry
Used in heat-exposed equipment and structural panels due to oxidation resistance.
🧪 Chemical Processing
Reactor linings and welded assemblies requiring stability under heat and mild chemicals.
✈️ Aerospace
Non-structural and thermal components where oxidation resistance is critical.
⛽ Oil & Gas
Exhaust systems and support structures operating at elevated temperatures.
💊 Pharmaceuticals
Used in equipment frames and housings requiring cleanliness and weld stability.
🏗️ Construction
Architectural panels, cladding, and roofing structures due to durability and aesthetics.
⚡ Electric Sector & EV
Battery enclosures, thermal shielding, and electrical cabinets due to thermal stability.
🚗 Automotive
Exhaust systems, catalytic converter shells, and heat shields for high-temperature resistance.
Why HRS Ferritic
Why choose HRS Ferritic for SS 430Ti Coils / AISI 430Ti Coils?
HRS Ferritic is committed to delivering high-performance ferritic stainless steel solutions that meet international standards and industry requirements. With strong sourcing capabilities and technical expertise, we ensure consistent quality, traceability, and long-term value for our global clientele.
Trusted SS 430Ti Coils Supplier & Importer
Available for sale as AISI 430Ti Coils Stockist
Sourced from valuable, certified global mills
Strict quality control and material traceability
Competitive pricing with bulk availability
Expertise as Importer of AISI 430Ti Coils
Timely domestic and international delivery
Custom sizes and surface finishes available
🇮🇳
Cities We Supply In India
New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia ·
Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar ·
Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur ·
Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍
Countries We Export To
Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE ·
Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia ·
United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support
Frequently Asked Questions
Quick answers to common queries about SS 430Ti Coils / AISI 430Ti Coils.
Larger widths and customized lengths of SS 430Ti Coils require more rolling capacity, handling, and transportation, increasing the overall price.
Thicker AISI 430Ti Coils use more raw material and weigh more, which raises both production and freight costs.
Additional finishes like annealed, pickled, or polished surfaces require extra processing, labor, and chemical usage, increasing the final price.
Yes, variations in chromium, titanium stabilization, steel scrap, and energy prices directly affect manufacturing costs and market pricing.
SS 430Ti Coils offer excellent high-temperature corrosion resistance and durability, making them ideal for exhaust manifolds, mufflers, and catalytic converter components.
Yes, AISI 430Ti Coils are commonly used in furnace parts, heat exchangers, and other high-temperature industrial applications due to their stabilized structure and resistance to sensitization.
