HRS Ferritic · Certified Supplier & Stockist

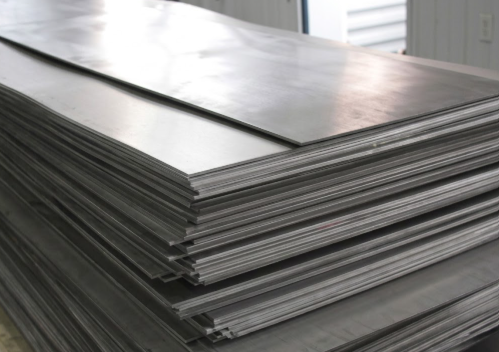

Incoloy 825 Stainless Steel Sheets
Exporter / Importer / Supplier
Nickel-Iron-Chromium Alloy · Outstanding Corrosion Resistance · Excellent Resistance to Sulfuric and Phosphoric Acids · High-Temperature Reliability · Durable & Cost-Effective
UNS N08825
EN 2.4858
ASTM B424
JIS NW 825
📋 Table of Contents
HRS Ferritic · Incoloy 825 Sheet Supplier & Stockist
Incoloy 825 Sheet
Exporter / Importer / Supplier
HRS Ferritic is a reputed name in the global alloy and specialty metals industry, offering high-quality nickel alloys, stainless steels, and corrosion-resistant materials. As a reliable Incoloy 825 Sheet Supplier, Incoloy 825 Sheet Stockist, and Incoloy 825 Sheet Importer, we focus on quality assurance, timely delivery, and customer-centric solutions to meet the evolving demands of diverse industries worldwide.
- Exceptional resistance to oxidizing and reducing environments
- Excellent resistance to sulfuric and phosphoric acids
- Superior resistance to stress corrosion cracking and pitting
- Nickel stabilizes structure against chloride stress corrosion
- Titanium stabilizes against intergranular corrosion
- Maintains mechanical strength in harsh industrial environments
825Nickel Alloy
Grade Overview
Overview of Incoloy 825 Sheet
Incoloy 825 Sheet is a nickel-iron-chromium alloy enhanced with molybdenum, copper, and titanium. It is specifically designed to provide exceptional resistance to corrosion in both oxidizing and reducing environments, making it vital for chemically aggressive and high-temperature applications.
38–46%
Nickel Content
19–23%
Chromium Content
550
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis
Metallurgical Characteristics of Incoloy 825
The performance of Incoloy 825 Sheet is driven by its balanced chemical composition for extreme reliability.
Ni
Nickel
Stabilizes the structure and enhances resistance to chloride stress corrosion cracking.
Cr
Chromium
Offers oxidation resistance and protection in oxidizing environments.
Mo
Molybdenum
Provides protection against reducing acids and increases pitting resistance.
Ti
Titanium
Stabilizes the alloy against intergranular corrosion after welding.
Cu
Copper
Enhances resistance to reducing acids, specifically sulfuric and phosphoric.
Fe
Iron
The base balance metal contributing to structural strength and integrity.
C
Carbon
Kept at a low level to maintain superior corrosion resistance properties.
Mn
Manganese
Supports hot working properties and structural stability.
Technical Data
Specifications for Incoloy 825 Sheet
ASTM B424 · UNS N08825 · EN 2.4858 · JIS NW 825 · DIN 17750
| Specification | Details |
|---|---|
| ASTM / ASME | ASTM B424 / ASME SB424 (Plate, Sheet, and Strip) |
| UNS | N08825 |
| EN | EN 10095 / EN 10204 – 2.4858 |
| DIN | DIN 17744 / DIN 17750 – NiCr21Mo |
| ISO | ISO 15156 / NACE MR0175 / ISO 6208 |
| JIS | NW 825 |
| Product Form | Sheets / Plates |
| Thickness Range | 0.5 mm to 100 mm |
| Standard Widths | 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, etc |
| Standard Lengths | 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000mm, etc |
| Custom Width Cut | Available as per customer requirement |
| Custom Length Cut | Available as per customer requirement |
| Surface Finish | Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP) |
| Supply Condition | Solution Annealed |
| Cutting Methods | Plasma, Laser, Waterjet, Oxy Propane |
| Packaging | Bundled, Wooden Plates, Bubble wraps, Customized |
Inventory
Available Stock & Product Forms
Flat Products
Precision sheets, heavy plates, and shim sheets in various dimensions.
Coils & Strips
Slitting coils and thin foils from 0.05 mm thickness.
Speciality Forms
Circles, rings, custom-cut blanks, and chequered plates.
Edge Conditions
Mill edge, slit edge, round edge, and square edge options available.
Nickel (Ni)
38.0 – 46.0% — High stability and chloride stress resistance.
Chromium (Cr)
19.5 – 23.5% — Superior oxidation resistance.
Molybdenum (Mo)
2.5 – 3.5% — Enhances resistance to reducing acids.
Copper (Cu)
1.5 – 3.0% — Key for resistance to sulfuric acid.
Tensile Strength
550 MPa — Reliable strength for high-temperature service.
Yield Strength
240 MPa — Consistent performance in heavy fabrications.
Elongation
30% — Balanced ductility for complex processing.
Density
8.14 g/cm³ — Optimized weight-to-performance ratio.
Product Range
Types of Incoloy 825 Sheets
As an experienced stockist, we maintain a wide range of sizes to ensure quick availability.
Hot Rolled Incoloy 825 Sheet
Cold Rolled Incoloy 825 Sheet
Annealed Incoloy 825 Sheet
Polished Incoloy 825 Sheet
Custom Cut Incoloy 825 Sheet
Annealed & Pickled (AP) Sheets
Application Sectors
Industries We Serve
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power Industry
Electricity generation and distribution systems.
Ship Building
Marine propulsion and exhaust components.
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition
Chemical Properties of Incoloy 825 Sheet
Balanced nickel-iron-chromium chemistry with molybdenum and copper for high chemical reliability.
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 38.0 – 46.0 |
| Chromium (Cr) | 19.5 – 23.5 |
| Molybdenum (Mo) | 2.5 – 3.5 |
| Copper (Cu) | 1.5 – 3.0 |
| Iron (Fe) | Balance |
| Titanium (Ti) | 0.6 – 1.2 |
| Carbon (C) | ≤ 0.05 |
Performance Data
Mechanical properties of Incoloy 825 Sheet
550
Tensile Strength
MPa — High strength for extreme thermal and pressure service
240
Yield Strength
MPa — Robust structure for heavy industrial components
30%
Elongation
Excellent ductility for fabricability and high-stress shaping
150 HB
Hardness
Balanced toughness for durability in corrosive fluids
8.14 g/cm³
Density
Optimal material density for specialized engineering designs
Cost Information
Factors Affecting the Price of Incoloy 825 Sheet
Price Factors
Understanding Pricing Variations
- Raw material cost variations (Nickel/Molybdenum)
- Sheet thickness and specific size requirements
- Manufacturing standards and surface finishes
- Order quantity and custom delivery timelines
- Import duties and global logistics considerations
Get A Free Quote
Connect with HRS!
Premium certified Incoloy 825 at best market value
📧 [email protected]
International Standards
Equivalent Grades for Incoloy 825 Steel Sheets
Global metallurgical designations for Incoloy 825 across major standards.
| Standard / Region | Equivalent Designation |
|---|---|
| UNS | N08825 |
| ASTM | B424 |
| EN / W.Nr. | 2.4858 |
| DIN | NiCr21Mo |
| JIS | NW 825 |
| AFNOR | NC 21 Fe D |
| AMS | AMS 5581 |
| BS | NA 16 |
| ISO / NACE | ISO 15156 / MR0175 |
📦
Ready Stock Availability & Product Forms
- Flat Products: Precision sheets, heavy plates, shim sheets
- Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
- Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
- Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
- Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
- Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
- Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
- Export Packaging: ISPM-15 fumigated wooden crates, shrink-wrapped protected
Why HRS Ferritic
Why choose HRS Ferritic for Incoloy 825 Sheets?
HRS Ferritic is committed to delivering premium-quality Incoloy 825 Sheets that meet international standards and industry expectations with direct certified sourcing.
Trusted Incoloy 825 Sheet Supplier
Large Incoloy 825 Stainless Steel Sheet Stockist
Sourced from valuable and certified manufacturers
Direct Importer with competitive global pricing
Guaranteed quality and strict documentation
Fast delivery and custom size solutions
Meets major international standards
Complete documentation and quality assurance
🇮🇳
Cities We Supply In India
New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia ·
Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar ·
Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur ·
Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍
Countries We Export To
Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE ·
Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia ·
United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support
Frequently Asked Questions
Quick answers to common queries about Incoloy 825 Sheets.
Incoloy 825 sheets are manufactured in accordance with ASTM B424 / ASME SB 424, under the designation UNS N08825, ensuring high-quality and consistent performance.
Yes, Incoloy 825 is fully suitable for sour gas and corrosive environments, as it complies with the stringent requirements of NACE MR0175 / ISO 15156.
The European equivalent grade for Incoloy 825 is EN 2.4858 / W.Nr. 2.4858, providing compatibility for international projects and standards.
Incoloy 825 sheets are available in a wide thickness range, from 0.5 mm up to 100 mm, with custom sizes and dimensions available on request to meet specific project requirements.
